Home ＞ USB Hub ＞ Universal Docking Station ＞ Y-DK09017: USB3.1 Gen1 Type-C Conversation Docking

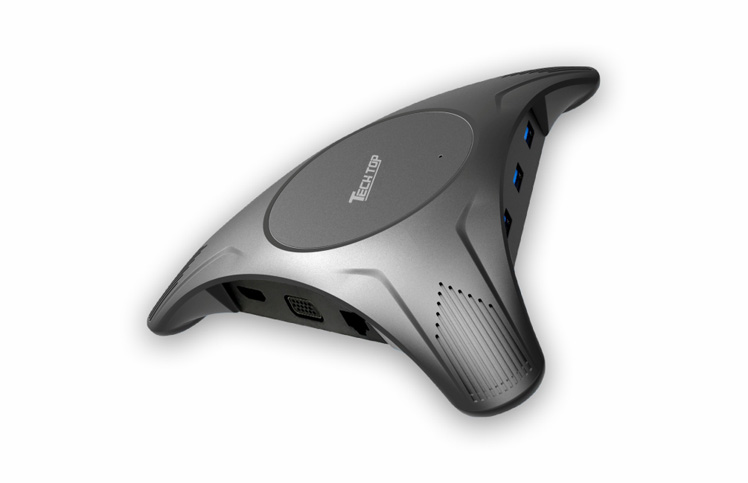

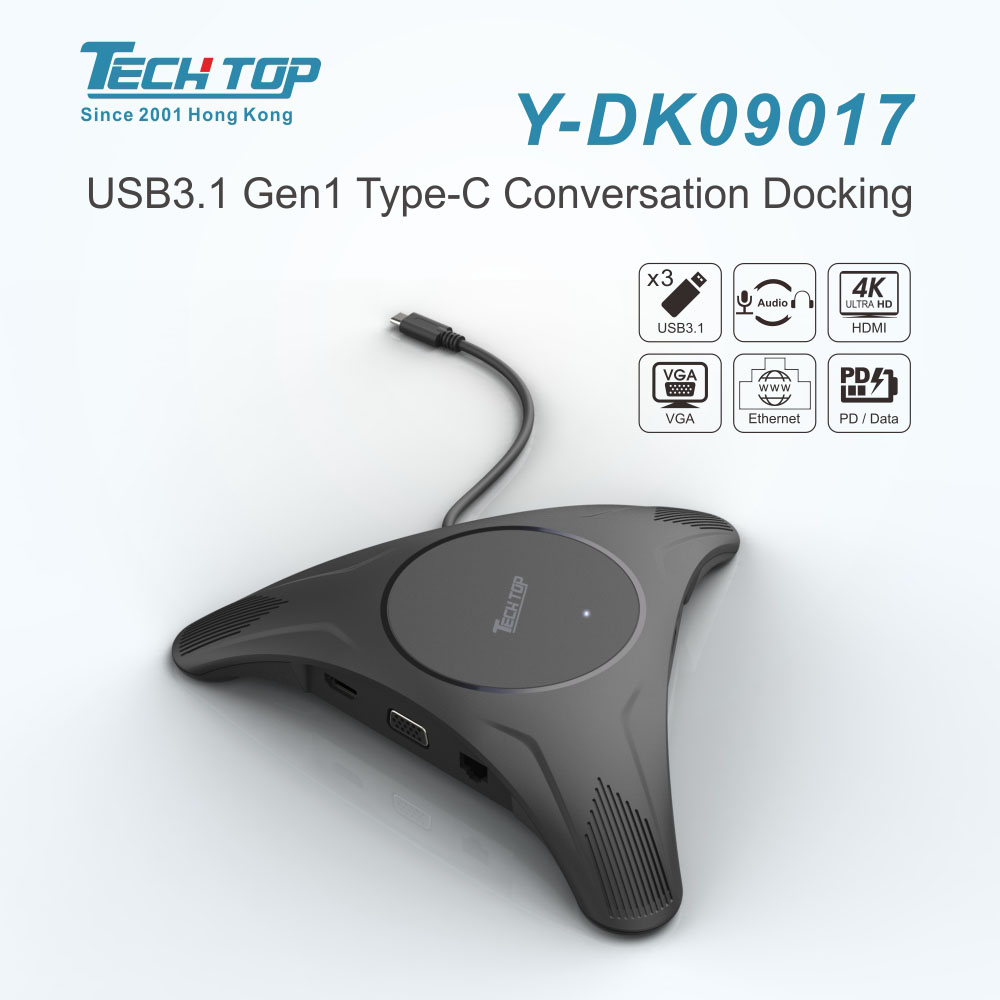

Y-DK09017: USB3.1 Gen1 Type-C Conversation Docking

Y-DK09017: USB3.1 Gen1 Type-C Conversation Docking

Upstream Port: 1×USB-C Male, USB3.1 Gen1 (5Gbps)


Downstream Ports:

3×USB-A (USB3.1 Gen1 5Gbps, BC1.2 charging)

1×VGA (1920×1080@60Hz)

1×HDMI 1.4 (4K@30Hz)

1×RJ45 (Gigabit Ethernet)

1×3.5mm Audio Out

1×3.5mm Mic In

1×USB-C PD Input (60W max, 20V/3A)

1×DC 12V (5.5×2.5mm power jack)


Data Transfer Speed:

USB: 5Gbps

Ethernet: 1000Mbps

Power Delivery: 60W PD input + 12V/2A DC (24W max)

Video Support:Single display output only (HDMI or VGA) HDCP1.4/2.3


Compatibility:
OS Support: Windows 7+/Linux 3.x+/macOS 10.5+

Standards: USB PD2.0, HDMI1.4

Material: Black ABS + reinforced metal baseDimensions: 218×193×38mm


￥ 0.00
0.00

Product Description

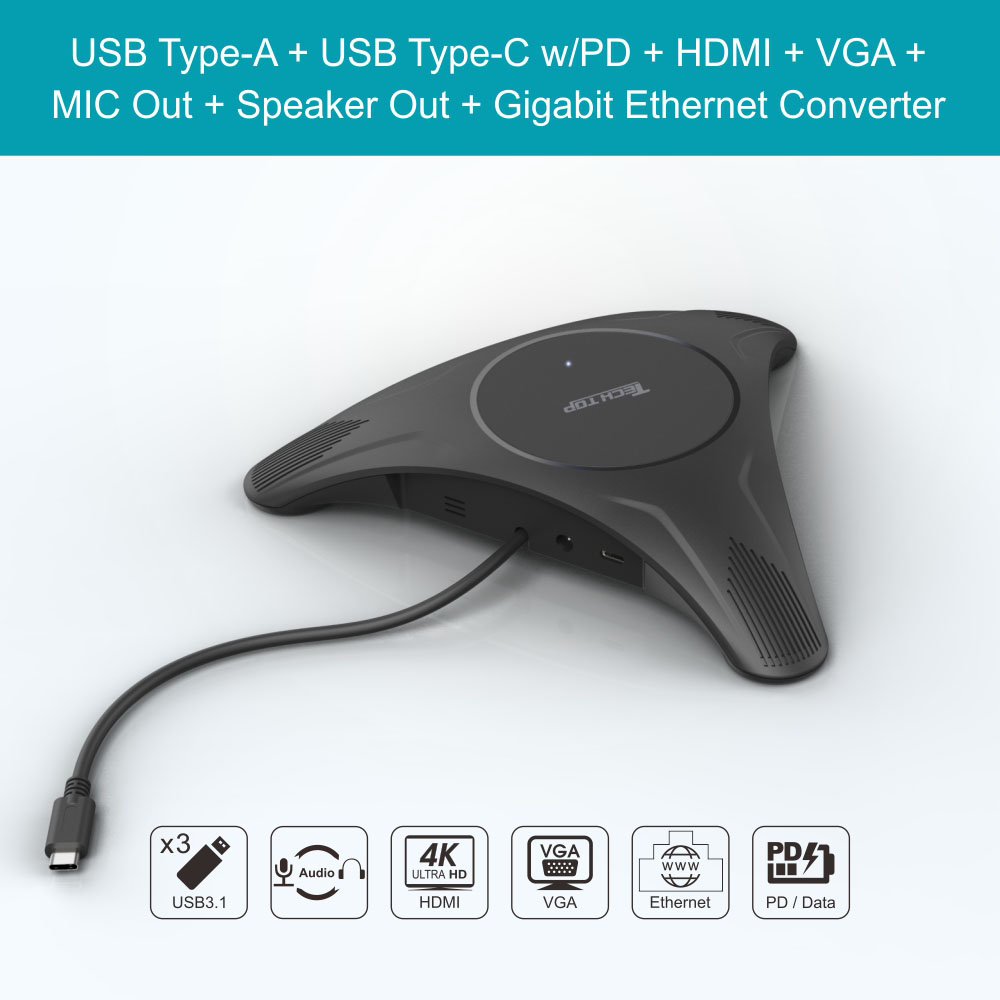

Upstream Port: 1×USB-C Male, USB3.1 Gen1 (5Gbps)


Downstream Ports:

3×USB-A (USB3.1 Gen1 5Gbps, BC1.2 charging)

1×VGA (1920×1080@60Hz)

1×HDMI 1.4 (4K@30Hz)

1×RJ45 (Gigabit Ethernet)

1×3.5mm Audio Out

1×3.5mm Mic In

1×USB-C PD Input (60W max, 20V/3A)

1×DC 12V (5.5×2.5mm power jack)


Data Transfer Speed:

USB: 5Gbps

Ethernet: 1000Mbps

Power Delivery: 60W PD input + 12V/2A DC (24W max)

Video Support:Single display output only (HDMI or VGA) HDCP1.4/2.3


Compatibility:
OS Support: Windows 7+/Linux 3.x+/macOS 10.5+

Standards: USB PD2.0, HDMI1.4

Material: Black ABS + reinforced metal baseDimensions: 218×193×38mm
