Upstream Port: 1 x USB3.0 5Gbps Type C Female; 1 x RJ45 Socket; 1 x FSYNC; 2 x USB-A 5Gbps Female; 1 x USB-C 5Gbps Female; 1 x RJ45 Socket

Downstream Port: 1 x USB3.0 5Gbps Type C Female; 1 x RJ45 Socket; 1 x FSYNC; 2 x USB-A 5Gbps Female; 2 x USB-C 5Gbps Female; 1 x RJ45 Socket

Performance:  Mainly applied to multimedia conferences, education, remote USB transmission and display control for industrial computers, and multimedia display control for medical equipment.

It has 4 USB downstream ports, allowing multiple 5Gbps USB devices to be connected simultaneously. It supports high-bandwidth transmission, achieve real-time uncompressed video with high resolution and high frame rate imaging, for processing the integrated processing and artificial intelligence capabilities of the camera.

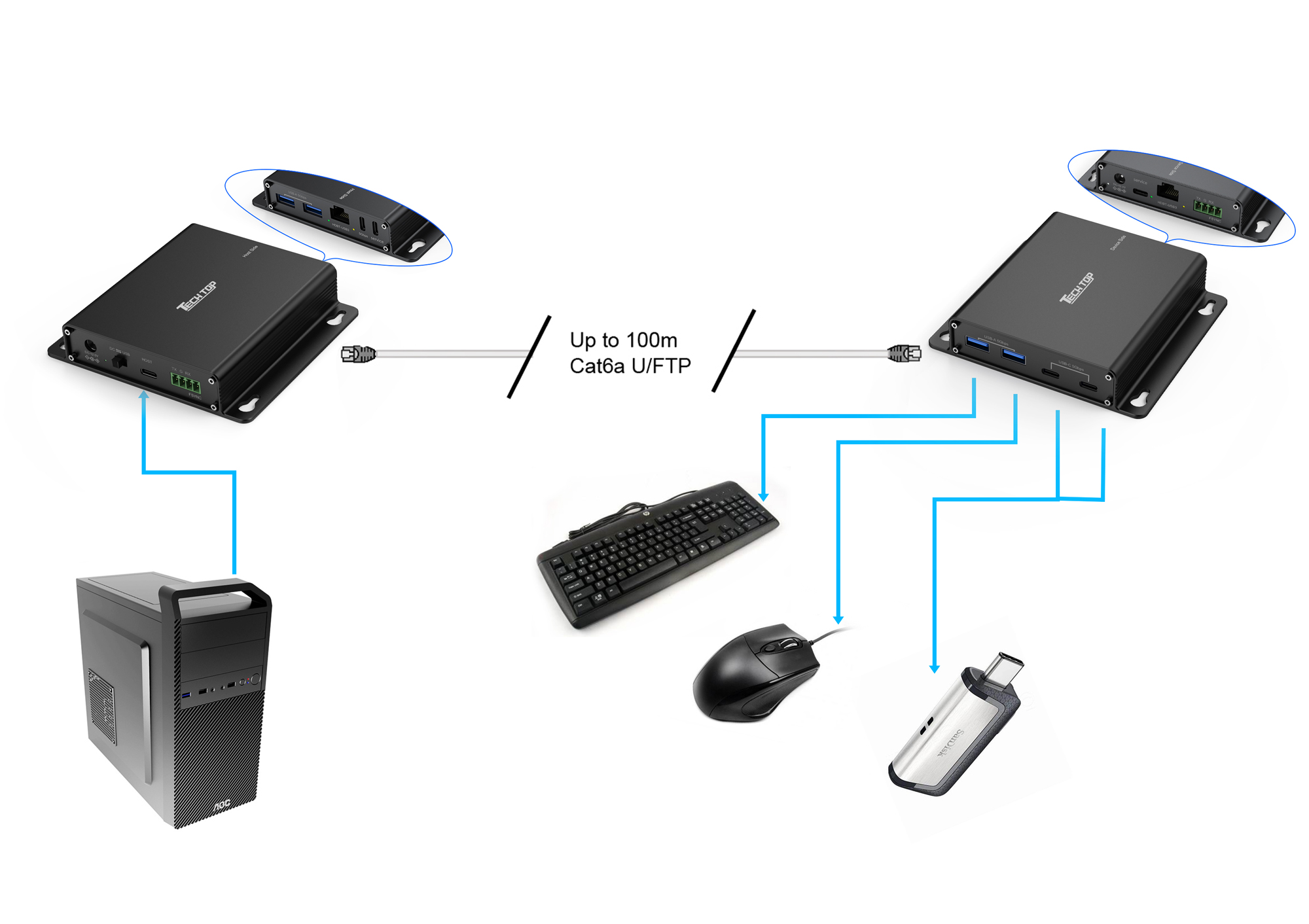

Supports FSYNC control. It can be controlled via UART/RS232 communication. It is used for RS232 remote control of some industrial cameras.It supports the extension of up to 100 meters through CAT6 network cables and has an enhanced power supply interface, which can supply power to USB devices with higher power consumption.

LED:  Power & LAN Status Indicator

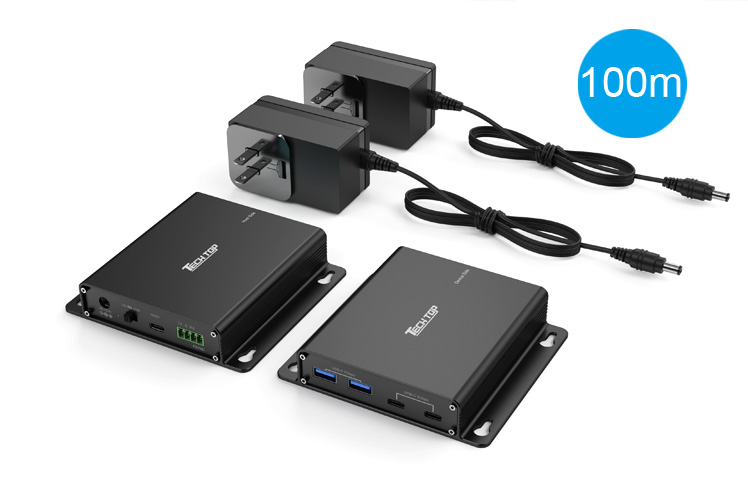

Power:  12V2A Power Adapter ( DC size: 5.5mm x 2.5mm )

Compatibility: Win7/8.1/10 ( 32/64 bit), Linux,  Mac OS 10.9-10.15, Smartphone & Tablet

Physical: 106 * 118 * 24mm, Black Metal Housing
