Home ＞ USB Hub ＞ Universal Docking Station

Products

D1117A: USB4 40Gbps(TBT4) Triple Display Docking Station

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Downstream Port: 1x USB4.0 For Upstream1x Type-A(10Gbps)2x Type-C(10Gbps)1x Type-A(5Gbps)1x Type-C(5Gbps)1x Audio1x RJ451x PD20W1x HDMI(8K30Hz)1x HDMI(4K60Hz)1x SD4.0/Micro SD3.0 Other Ports: 22.0V（140W GaN Power Adaptor）Compatible OS: Windows 10/11, Linux kernel 3.x+, Mac OS 10.6+ LED Indicators: White: Power status + Yellow/Green: Ethernet activityDimensions: 126 x 42.5 x 102mm
D1136A: USB4 40Gbps Multi-Function Docking Station with MST

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Upstream Port: USB4 Type-CF*1 Downstream Port: 2 * USB4.0(40Gbps) 2 * HDMI 8K@30Hz Female 1 * Type-C(20Gbps) 1 * Type-C(10Gbps) 1 * Type-C(PD45W+10Gbps) 1 * USB-A(10Gbps) 3* USB-A(5Gbps) 1 * RJ45 Other Ports: 240W (30V/8A) Compatible OS: Windows 10/11, Linux kernel 3.x+, Mac OS 10.6+ LED Indicators: White: Power status + Yellow/Green: Ethernet activityDimensions: 151.5 x 103 x 38mm
D1132A: USB-C/HDMI2.0 and 2.1 Switch Multi Function Docking Station

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Upstream Port: Type-CF*1、HDMI AF*1 （Host） Downstream Port: 2 * Type-A(10Gbps) 3 * Type-A(480Mbps) 1 * RJ451 * Type-C(PD45W+10Gbps) 2 * HDMI 4K@60Hz Female 1 * DP 4K@60Hz Female1 * Audio Other Ports: PD 100W charging port (20V/5A) Compatible OS: Windows 10/11, Linux kernel 3.x+, Mac OS 10.6+ LED Indicators: White: Power status + Yellow/Green: Ethernet activityDimensions: 151.5 x 105 x 38mm
D1146A: 15-in-1 Docking Station (USB A(5G)*4 + USB A*1(10G) + USB C(10G)*2 + DP1.4 + HDMI2.0*2 + RJ45 + SD/TF3.0 + Audio + PD3.0)

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Downstream Port: 4 * USB3.2 Gen 1 Type-A 5Gbps2 * USB 3.2 Gen II 10Gbps Type C Female1 * USB3.2 Gen 1 Type-A 10Gbps2 * HDMI 2.0, 4K@60Hz Female1 * DP 1.4, 4K@60Hz Female1 * SD3.0/Micro SD3.0 Multi-LUN1 * Audio1 * Gigabit Ethernet Port, support up to 1000Mbps1 * USB Type C Female (Power Delivery 100W) Other Ports: PD 100W charging port (20V/5A) Compatible OS: Windows 10/11, Linux kernel 3.x+, Mac OS 10.6+ LED Indicators: White: Power status + Yellow/Green: Ethernet activityDimensions: 126 x 42.5 x 102mm
G1002H: Docking Station for Switch 1&2

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Upstream Port: 1x Type-C (USB 3.2 Gen1)Downstream Ports:1x HDMI 2.1 (4K@120Hz)1x RJ45 Gigabit Ethernet (10/100/1000Mbps)3x USB 2.0 Type-A (480Mbps)1x PD3.0 Type-C (100W max)Other Ports: 5x Game card slotsData Transfer Speed:•HDMI: Up to 48Gbps (HDMI 2.1)•USB: 480Mbps•Ethernet: 1000Mbps•Output Current:•USB ports: 500mA each•PD port: 60W (Switch2), 100W max•Input Power: PD3.0 (100W max)LED Indicators:•Yellow: Data activity (flashing during transfer)•Green: Network connection (steady when connected)Physical Characteristics:•Material: ABS plastic•Color: Matte black•Dimensions: 170×82×31.3mm
G1005A: All-in-One Dock for Nintendo Switch Game Console

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Device Compatibilty: Nintendo SwitchHost Power (PD): USB-C PD 100WStorage Slot: 6Max Output Resolution: 4K@30HzHDMI: 1 (Downstream)USB-A: 3 x 480Mbps (Downstream)USB-C: 1 x PD100W (Downstream), 1 x DC5.0V (Downstream)Ethernet RJ45 Jack: 1 x 1000Mbps (Downstream)Network Speed: 1000MbpsData transfer rate: 480MbpsCable Length: 20cmCable Type: USB-A to USB-CPower Supply: 20V5ADimensions: 193.0mm x 196.0mm x 42.0mmMaterial: ABS HousingColour: Black
D1097A: Cooling Dock Pro for Steam Deck

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Device Compatibilty: Steam DeckHost Power (PD): USB-C PD 100WStorage Slot: 1Max Output Resolution: 8K@30Hz (Single), 4K@60Hz (Dual)HDMI: 1 (Downstream)USB-A: 2 x 10Gbps (Downstream)USB-C: 2 x 10Gbps (Upstream), 1 x 10Gbps (Downstream), 1 x PD100W (Downstream), 1 x DC 5.0V (Downstream)Ethernet RJ45 Jack: 1 x 1000Mbps (Downstream)Network Speed: 1000MbpsData transfer rate: 10GbpsCable Length: 2MCable Type: USB-C to USB-CPower Supply: 20V5ADimensions: 130.5mm x 80.5mm x 90.0mmMaterial: Aluminum AlloyColour: Black

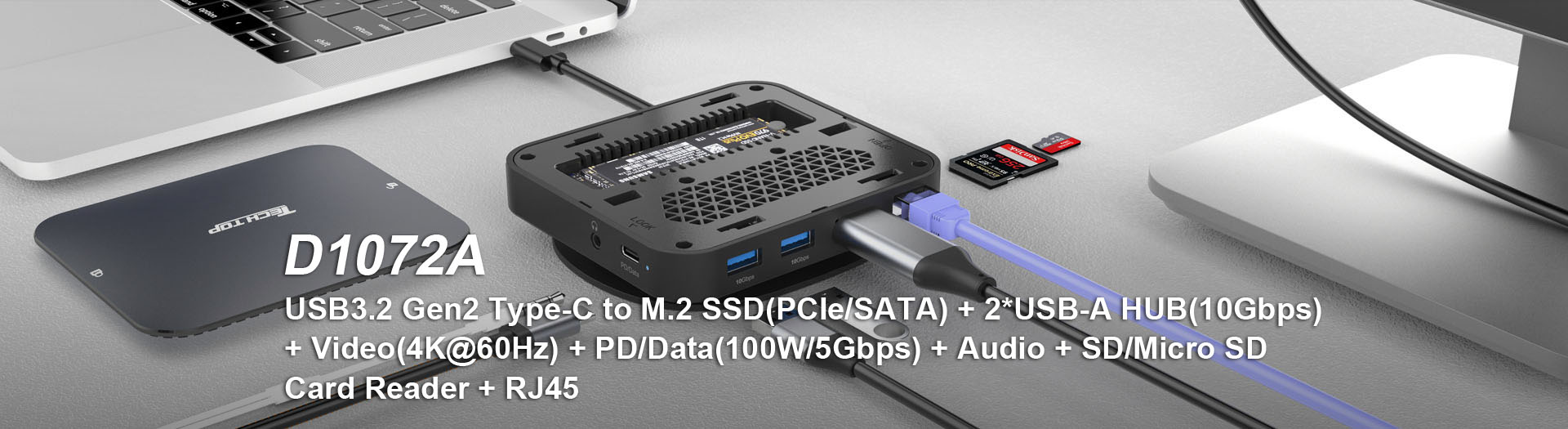

D1072A: USB3.2 Gen2 Type-C to M.2 SSD+2*USB-A HUB+Video+RJ45+SD/Micro SD Card Reader+Audio+PD/Data

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Upstream Port: 1×USB-C, USB3.2 10Gbps (Reversible plug Downstream Ports: 2×USB-A (10Gbps), USB3.2/2.0/1.11×M.2 SSD slot (PCIe& SATA) 1×HDMI 2.0 (4K@60Hz, HDCP1.4/2.3)1×RJ45 (Gigabit Ethernet) 1×SD/Micro SD Card Reader (5Gbps max)1×Audio combo jack (4-pole, 384kHz/24bit DAC) 1×USB-C PD (100W, 20V/5A + 5Gbps data) Data Transfer Speed:USB: 10GbpsEthernet: 1000MbpsSSD: PCIe Gen3x2 (≈20Gbps) / SATA6GbpsPower Delivery: 100W max (65W+ devices reserve 15W)Video Support: 4K@60Hz HDR10+, Dolby Vision VRR, QMS, QFT, ALLM Compatibility:SSD Support: NVMe/AHCI, TRIM, UASP accelerationOS Support: Windows 7+/Linux 3.x+/macOS 10.6+Cooling: Includes 22×70×3mm heatsink & 1mm thermal padsMaterial: Anodized aluminum (heat dissipation) + ABSColor: Titanium grayDimensions: 110×100×31.5mm
Z-DK09015: USB3.1 Gen1 Type-C Multi-port Hub with MST

Universal Docking Station

市场价:￥0.00

价格:￥0.00

Upstream Port: 1×USB-C Male, USB3.1 (10Gbps) Downstream Ports:2×USB-A (USB3.0 5Gbps, blue connectors)1×RJ45 (Gigabit Ethernet)1×Mini DisplayPort 1.2 (4K@30Hz)1×HDMI 1.4b (4K@30Hz)1×VGA (1920×1080)1×USB-C PD (60W max, 20V/3A + USB3.0 data) Data Transfer Speed:USB: 5GbpsEthernet: 1000MbpsPower Delivery: 60W (20V/3A)Video Support: Triple display: VGA + HDMI + MiniDP (extend/mirror modes) HDCP1.4/2.3 Compatibility: OS Support: Windows XP+/Linux/macOS 10.5+Standards: USB PD3.0, DP1.2, HDMI1.4bCooling: Passive (aluminum heat dissipation)Material: Anodized aluminum (titanium gray) + ABSDimensions: 168×79×18mm

Total 10 record(s)12 Next> Last
