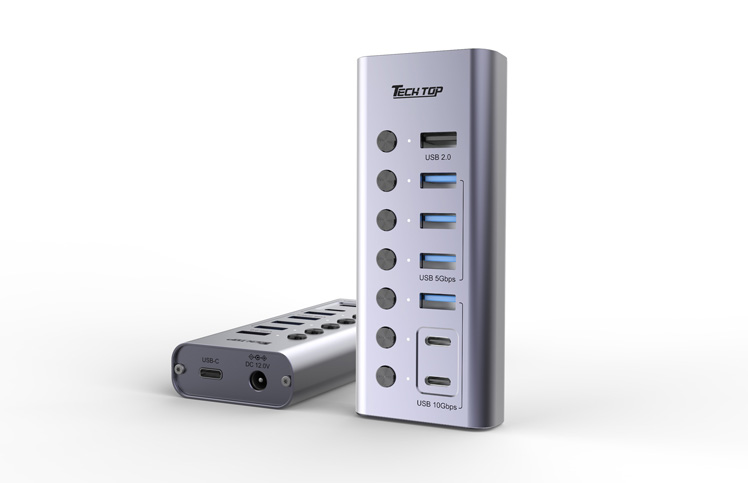

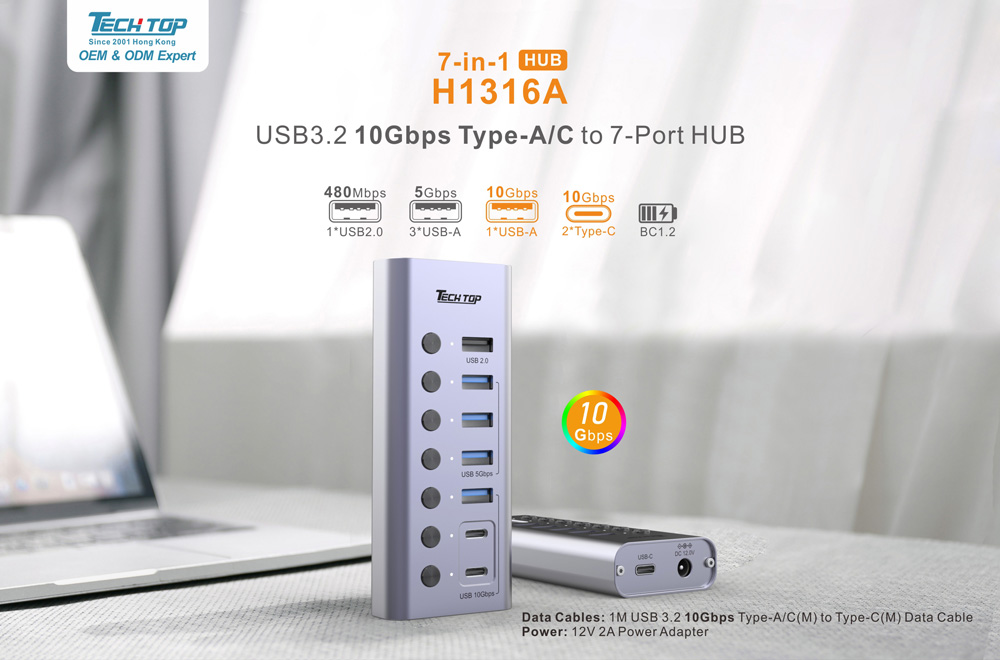

H1316A: USB3.2 10Gbps Type-A/C to 7-Port HUB

H1316A: USB3.2 10Gbps Type-A/C to 7-Port HUB

Upstream Port: 1x USB-C Female (10Gbps)


Downstream Ports:

3x Hybrid (1A+2C) USB 10Gbps

3x USB-A 5Gbps

1x USB-A 2.0 (480Mbps)


Other Ports: DC12V Power Input (Reverse Current Protection)


Data Transfer Speed: 10Gbps (USB3.2 Gen2) 5Gbps (USB3.0) 480Mbps (USB2.0)

Output Current: 2A Total (DC12V)

Input Power: DC12V/2A External Power


Compatible OS:
Windows 7/8/10/11, Linux kernel 3.x+, Mac OS 10.6+

LED: White Activity Indicators (All Ports)

Material: Anodized Aluminum Alloy

Color: New Titanium Gray (Matte Finish)

Dimensions: 118×49.5×20mm


0.00
0.00

Product Description

Upstream Port: 1x USB-C Female (10Gbps)


Downstream Ports:

3x Hybrid (1A+2C) USB 10Gbps

3x USB-A 5Gbps

1x USB-A 2.0 (480Mbps)


Other Ports: DC12V Power Input (Reverse Current Protection)


Data Transfer Speed: 10Gbps (USB3.2 Gen2) 5Gbps (USB3.0) 480Mbps (USB2.0)

Output Current: 2A Total (DC12V)

Input Power: DC12V/2A External Power


Compatible OS:
Windows 7/8/10/11, Linux kernel 3.x+, Mac OS 10.6+

LED: White Activity Indicators (All Ports)

Material: Anodized Aluminum Alloy

Color: New Titanium Gray (Matte Finish)

Dimensions: 118×49.5×20mm
