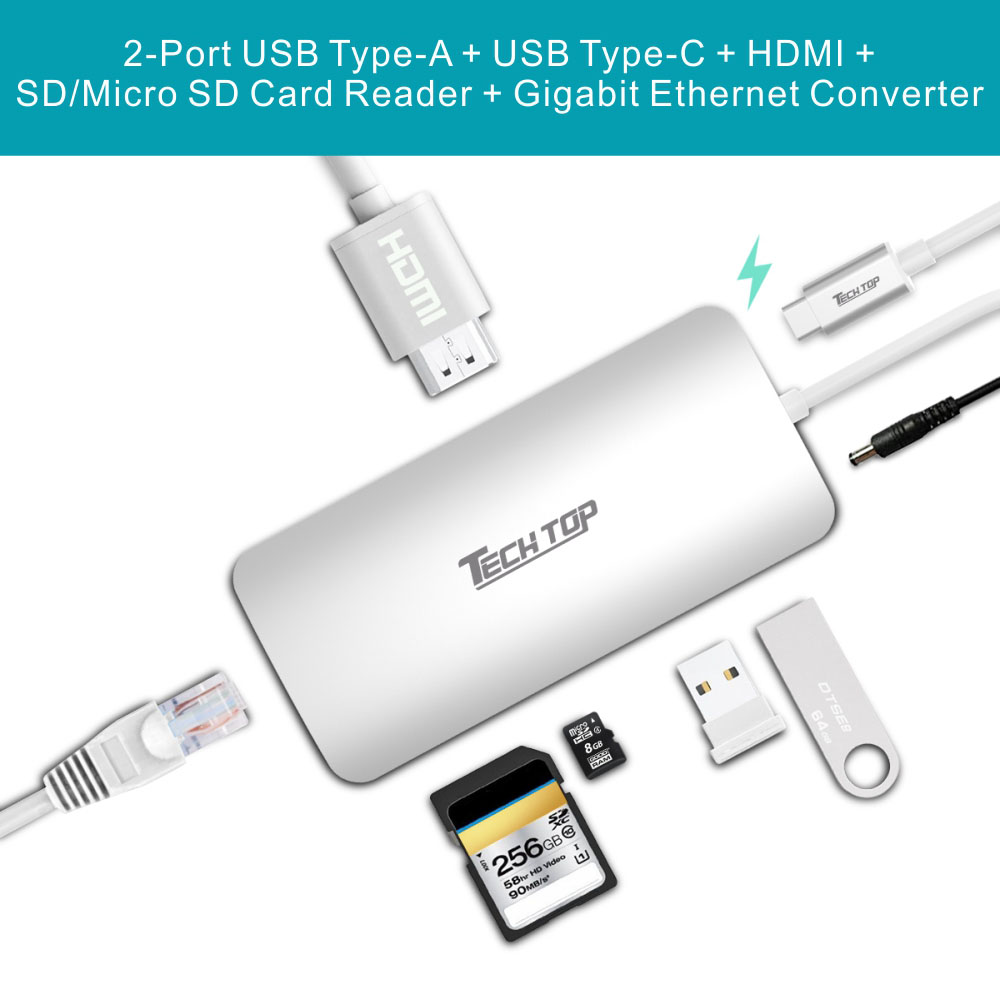

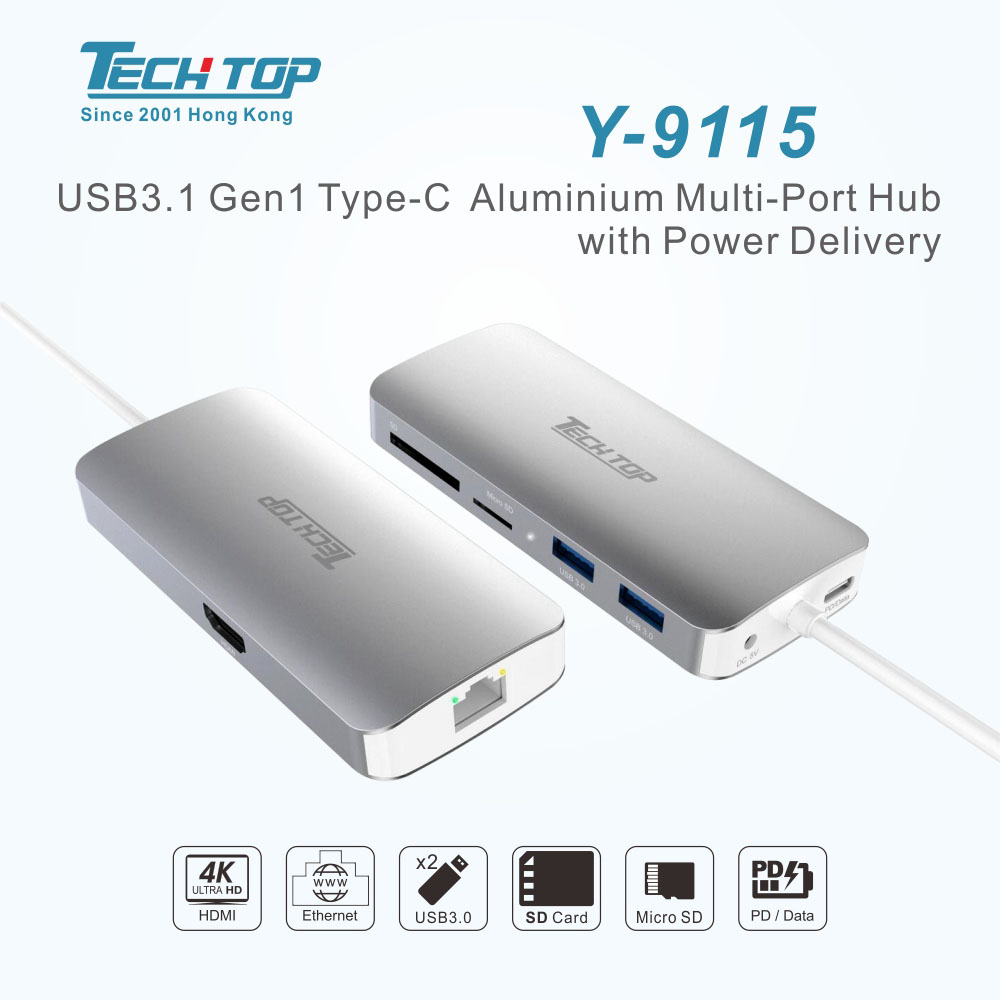

Y-9115: USB3.1 Type-C Aluminium Multi-Port HUB with Power Delivery

Y-9115: USB3.1 Type-C Aluminium Multi-Port HUB with Power Delivery

Upstream Port:

1x USB3.0 Type-C Male (aluminum alloy)


Downstream Ports:

2 x USB3.0 Type-A Female

1 x HDMI

1 x RJ45 (Gigabit Ethernet)

1 x Micro SD/SD card reader

1 x DC 5V/2A power input


Data Transfer Speed:

USB3.0: 5Gbps

Ethernet: 10/100/1000Mbps


Power Delivery:
Supports USB PD Profile4 (20V/3A max)

Compatible with USB Power Delivery Spec 2.0 v1.1


LED Indicators:

Yellow: RJ45 data activity (ACT)

Green: RJ45 network connection (LINK)

White: Power status (constant on when powered)


Compatibility: Windows XP/Vista/7/8/8.1/10 (32/64bit) Linux kernel 3.x+Mac OS X 10.5-10.12


¥ 0.00
0.00

Product Description

Upstream Port:

1x USB3.0 Type-C Male (aluminum alloy)


Downstream Ports:

2 x USB3.0 Type-A Female

1 x HDMI

1 x RJ45 (Gigabit Ethernet)

1 x Micro SD/SD card reader

1 x DC 5V/2A power input


Data Transfer Speed:

USB3.0: 5Gbps

Ethernet: 10/100/1000Mbps


Power Delivery:
Supports USB PD Profile4 (20V/3A max)

Compatible with USB Power Delivery Spec 2.0 v1.1


LED Indicators:

Yellow: RJ45 data activity (ACT)

Green: RJ45 network connection (LINK)

White: Power status (constant on when powered)


Compatibility: Windows XP/Vista/7/8/8.1/10 (32/64bit) Linux kernel 3.x+Mac OS X 10.5-10.12
