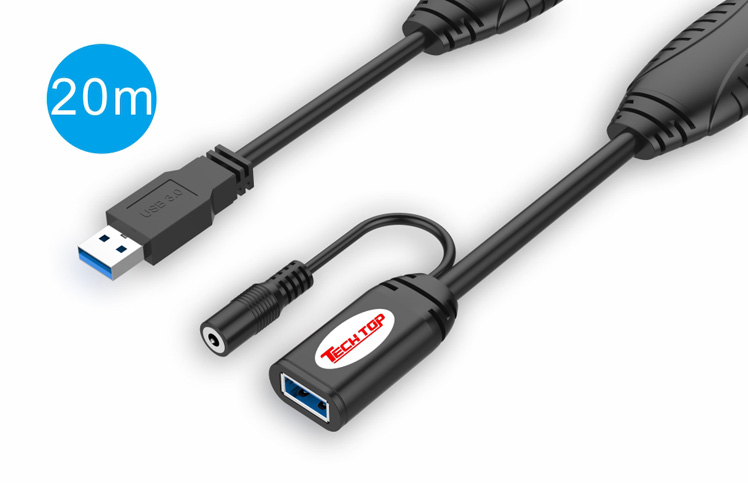

Y-3007: 20M, USB3.2 Gen1 Active Extension Cable

Y-3007: 20M, USB3.2 Gen1 Active Extension Cable

Upstream Port: 1 x USB 3.0 Type-A Male (Nickel-plated connector)


Downstream Port: 1 x USB 3.0 Type-A Female (Nickel-plated connector)


Data Transfer Speed: 5Gbps (USB 3.0), backward compatible with USB 2.0/1.1

Power Input: DC 5V/2A (3.5×1.35mm connector recommended for stable operation)


Compatible OS: Windows XP/Vista/7/8/8.1/10 (32/64-bit), Linux, Mac OS

Material: Black aluminum alloy housing


Cable Specifications:

Heavy-duty shielded cable (OD:7.0mm)

25AWG+28AWG+22AWG wire configuration with aluminum-magnesium braid

Professional-grade EMI shielding


￥ 0.00
0.00

Product Description

Upstream Port: 1 x USB 3.0 Type-A Male (Nickel-plated connector)


Downstream Port: 1 x USB 3.0 Type-A Female (Nickel-plated connector)


Data Transfer Speed: 5Gbps (USB 3.0), backward compatible with USB 2.0/1.1

Power Input: DC 5V/2A (3.5×1.35mm connector recommended for stable operation)


Compatible OS: Windows XP/Vista/7/8/8.1/10 (32/64-bit), Linux, Mac OS

Material: Black aluminum alloy housing


Cable Specifications:

Heavy-duty shielded cable (OD:7.0mm)

25AWG+28AWG+22AWG wire configuration with aluminum-magnesium braid

Professional-grade EMI shielding





Specification:

Extends Connections Between 2 USB-A Devices and/or Cables

Increases length of device cable up to 20M

Supports data transfer rates up to 5 Gbps

Built-in bus-powered signal booster for peak performance

Backward compatible with previous USB generations
