D1028A: USB3.2 Gen2 10Gbps Type-C Multi-Port Hub with Power Delivery

D1028A: USB3.2 Gen2 10Gbps Type-C Multi-Port Hub with Power Delivery

Upstream Port: 1x USB3.2 GEN2 Type-C (10Gbps), supports reversible plug


Downstream Ports:

2 x USB3.2 GEN2 Type-A (10Gbps)

1 x HDMI 2.0 (4K@60Hz, HDCP 1.4/2.2/2.3)

1 x Gigabit RJ45 (10/100/1000Mbps)

1 x Type-C PD (100W charging + USB2.0 data)


Data Transfer Speed:

USB3.2: 10Gbps (2x faster than USB3.0, 20x faster than USB2.0)

HDMI: 18Gbps bandwidth

Ethernet: 1000Mbps


Output Current:

PD Port: 100W max

Data Ports: 5V/0.9A per USB-A port


Compatible OS: Windows 10 (32/64bit), Linux, Mac OS

LED Indicator: White (constant on when powered)


Physical Characteristics:

Material: Aluminum alloy with cooling vents

Color: Titanium gray frame + black bezel

Dimensions: 115×51×18mm


0.00
0.00

Product Description

Upstream Port: 1x USB3.2 GEN2 Type-C (10Gbps), supports reversible plug


Downstream Ports:

2 x USB3.2 GEN2 Type-A (10Gbps)

1 x HDMI 2.0 (4K@60Hz, HDCP 1.4/2.2/2.3)

1 x Gigabit RJ45 (10/100/1000Mbps)

1 x Type-C PD (100W charging + USB2.0 data)


Data Transfer Speed:

USB3.2: 10Gbps (2x faster than USB3.0, 20x faster than USB2.0)

HDMI: 18Gbps bandwidth

Ethernet: 1000Mbps


Output Current:

PD Port: 100W max

Data Ports: 5V/0.9A per USB-A port


Compatible OS: Windows 10 (32/64bit), Linux, Mac OS

LED Indicator: White (constant on when powered)


Physical Characteristics:

Material: Aluminum alloy with cooling vents

Color: Titanium gray frame + black bezel

Dimensions: 115×51×18mm





Related Products

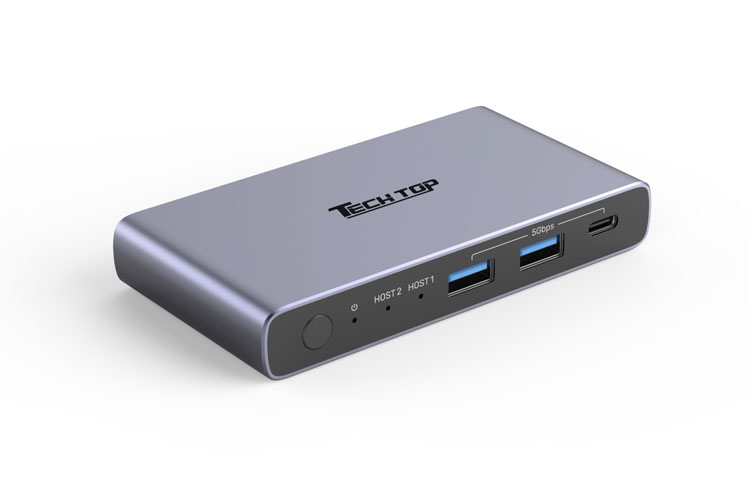

  • D1133A: USB3.2 5Gbps 5-in-1 Type C KVM Dock

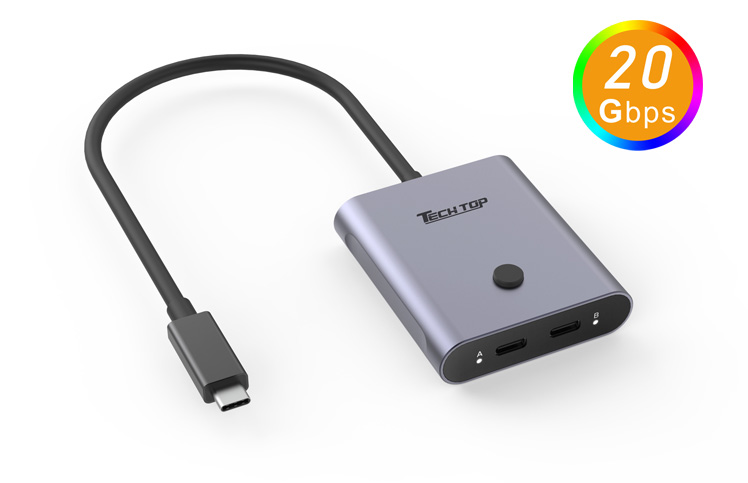

  • D1078C: USB-C Bi-Direction Switch  for 20Gbps Versions(DATA & VIEDO & PD)
