Home ＞ USB Storage ＞ HDD & SSD Adapter ＞ S1222A: USB3.2 Gen2 Type-C to M.2 PCIe/NVMe + AHCI / SATA 2.5"/3.5" SSD&HDD Connector
S1222A: USB3.2 Gen2 Type-C to M.2 PCIe/NVMe + AHCI / SATA 2.5

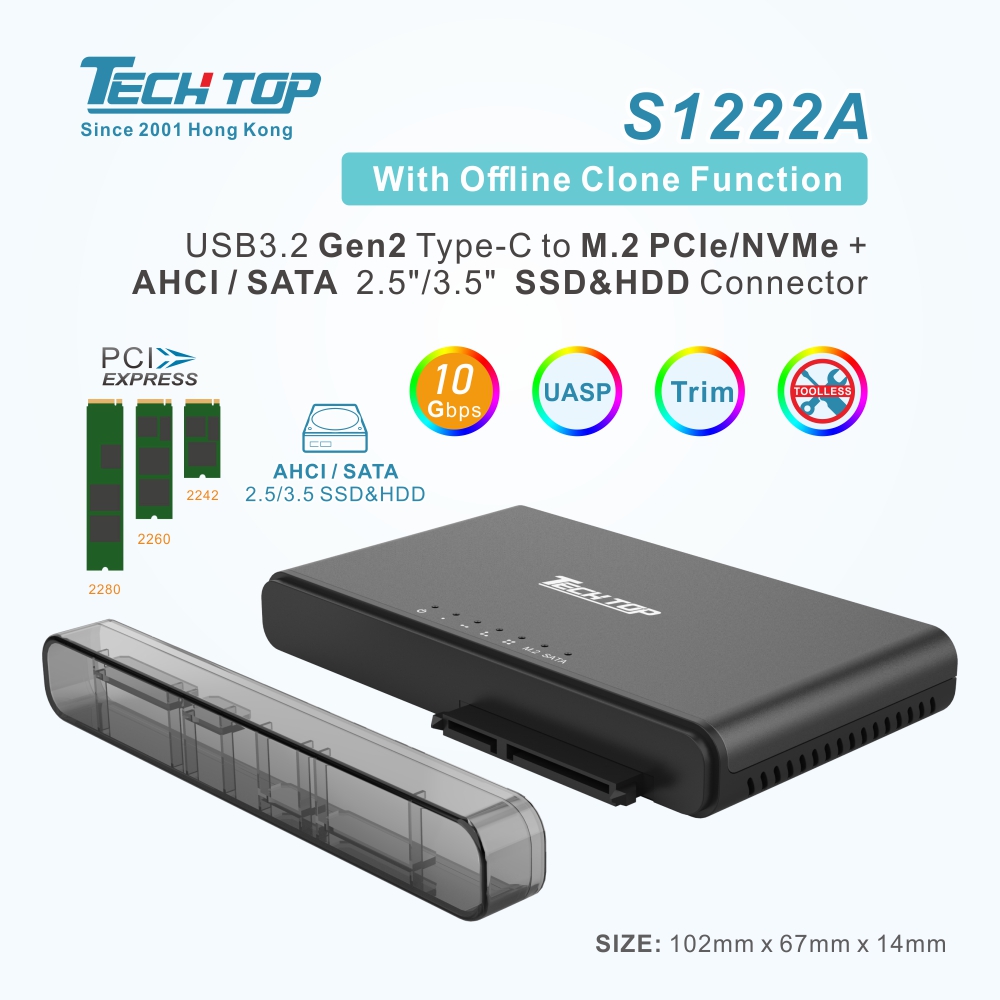

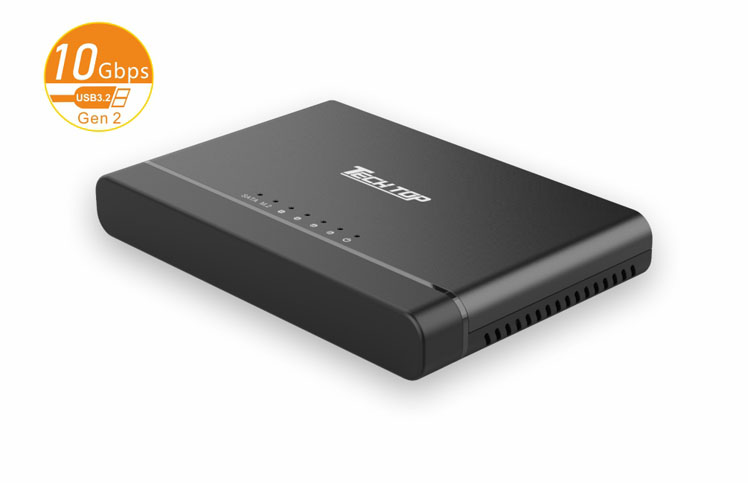

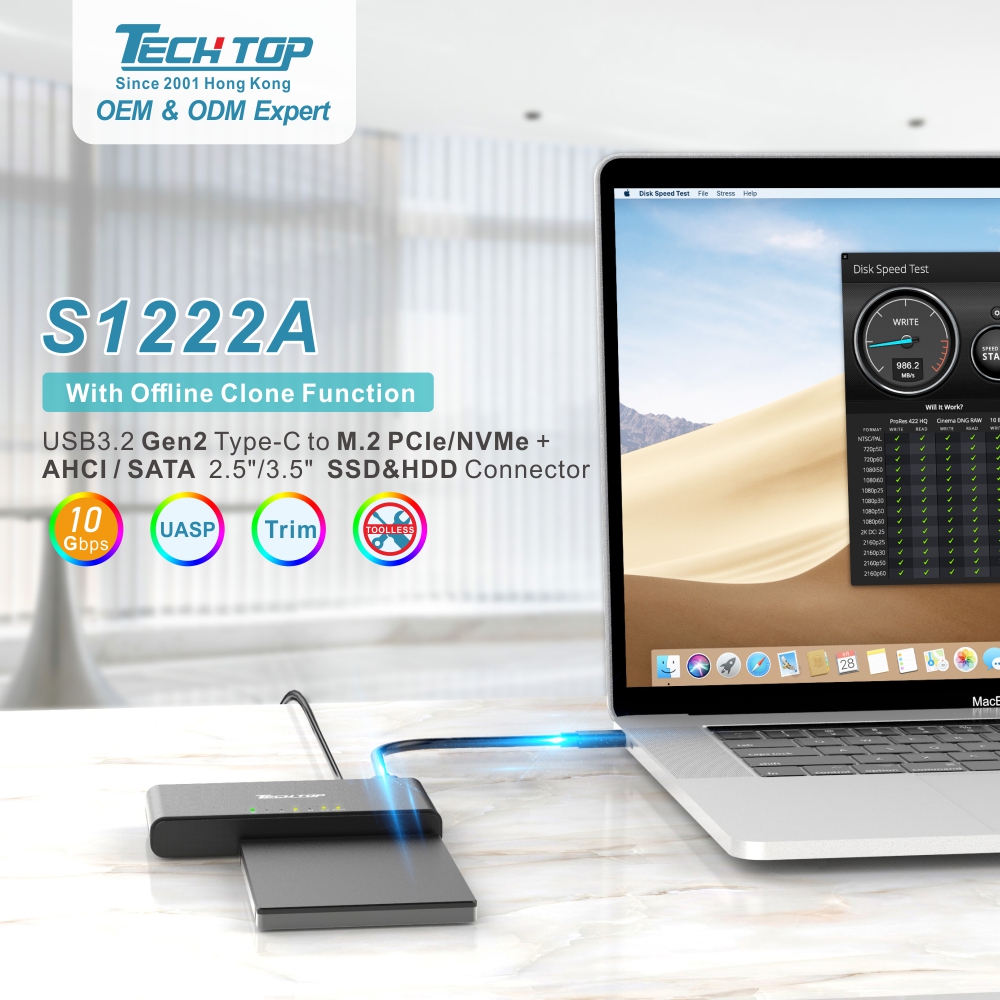

S1222A: USB3.2 Gen2 Type-C to M.2 PCIe/NVMe + AHCI / SATA 2.5"/3.5" SSD&HDD Connector

Upstream Port: 1 x USB 3.2 10Gbps Type C

Downstream Port: 1 x M key M.2 SSD Slot (42mm/60mm/80mm), 1 x SATA3.1 Connector, 1 x 5.5 * 2.5mm DC Port, 1 x Power Switch, 1 x Bidirectional Clone Switch

Performance: 10Gbps, PCIe Gen3X2 NVMe 1.3, SATA 3.1, UASP, Trim, Simultaneous read/write, Offline clone

LED: Clone progress indicator

Power: USB - Powered and 12V/2A Adapter

Compatibility: M.2 PCIe NVMe, SATA 3.1

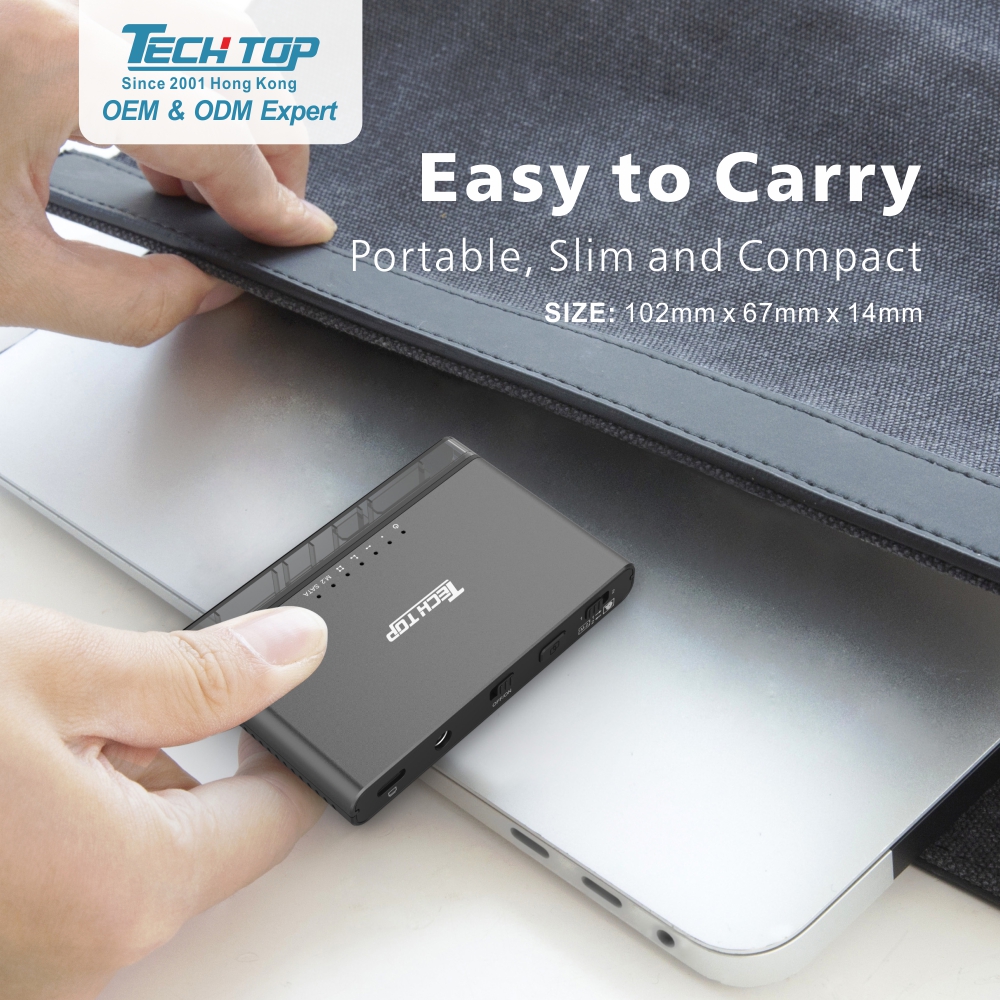

Physical: 102 * 67.5 * 14.5mm, Black (Aluminum alloy + Plastic), 0°C - 70°C Operating

What's In The Box: M.2 + SATA Enclosure, 12V/2A Adapter, 10Gbps 300mm 2in1 CM to CM with AM to CF Adapter, Thermal Silica Pad + Aluminum Heat Sink


￥ 0.00
0.00

Product Description

Upstream Port: 1 x USB 3.2 10Gbps Type C

Downstream Port: 1 x M key M.2 SSD Slot (42mm/60mm/80mm), 1 x SATA3.1 Connector, 1 x 5.5 * 2.5mm DC Port, 1 x Power Switch, 1 x Bidirectional Clone Switch

Performance: 10Gbps, PCIe Gen3X2 NVMe 1.3, SATA 3.1, UASP, Trim, Simultaneous read/write, Offline clone

LED: Clone progress indicator

Power: USB - Powered and 12V/2A Adapter

Compatibility: M.2 PCIe NVMe, SATA 3.1

Physical: 102 * 67.5 * 14.5mm, Black (Aluminum alloy + Plastic), 0°C - 70°C Operating

What's In The Box: M.2 + SATA Enclosure, 12V/2A Adapter, 10Gbps 300mm 2in1 CM to CM with AM to CF Adapter, Thermal Silica Pad + Aluminum Heat Sink
