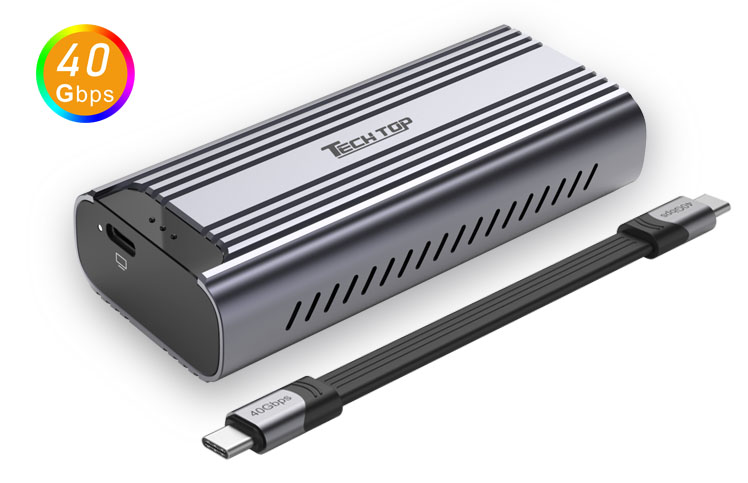

S1226A: Thunderbolt 3& USB 40Gbps to M.2 PCIe 3x4 （PCIe NVMe） SSD Enclosure
Upstream Port: 1 x Type - C/F
Downstream Port: 1 x M.2 M Key Slot (2280mm, 12.5mm thick including heatsink)
Performance: Thunderbolt 3 & USB 40Gbps, PCIe Gen3x4 NVMe, UASP, TRIM, Compatible with USB GEN2 (10Gbps), USB GEN1 (5Gbps) and USB2.0 (480Mbps), 4 - lane 8GT/s connection speed
LED: Green (Solid: Powered on, Flicker: Read/Write)
Power: No external power
Compatibility: M.2 PCIe NVMe (M Key and M + B Key), Windows and Mac (implied by general compatibility of such devices)
Physical: 107 * 46 * 24mm, New Titanium Gray, Aluminum alloy, High - end texture
What's In The Box: M.2 SSD Enclosure, 15cm Type - CM to Type - CM Thunderbolt 3 Cable, 2 x M.2 Hard Drive Fixing Screws, 1 x Mini Screwdriver, 0.5mm Thick Thermal Silica Gel Sheet, 0.5mm Thick Aluminum Sheet with Film, 1 x Instruction Manual, 1 x Color Box
Upstream Port: 1 x Type - C/F
Downstream Port: 1 x M.2 M Key Slot (2280mm, 12.5mm thick including heatsink)
Performance: Thunderbolt 3 & USB 40Gbps, PCIe Gen3x4 NVMe, UASP, TRIM, Compatible with USB GEN2 (10Gbps), USB GEN1 (5Gbps) and USB2.0 (480Mbps), 4 - lane 8GT/s connection speed
LED: Green (Solid: Powered on, Flicker: Read/Write)
Power: No external power
Compatibility: M.2 PCIe NVMe (M Key and M + B Key), Windows and Mac (implied by general compatibility of such devices)
Physical: 107 * 46 * 24mm, New Titanium Gray, Aluminum alloy, High - end texture
What's In The Box: M.2 SSD Enclosure, 15cm Type - CM to Type - CM Thunderbolt 3 Cable, 2 x M.2 Hard Drive Fixing Screws, 1 x Mini Screwdriver, 0.5mm Thick Thermal Silica Gel Sheet, 0.5mm Thick Aluminum Sheet with Film, 1 x Instruction Manual, 1 x Color Box
-
