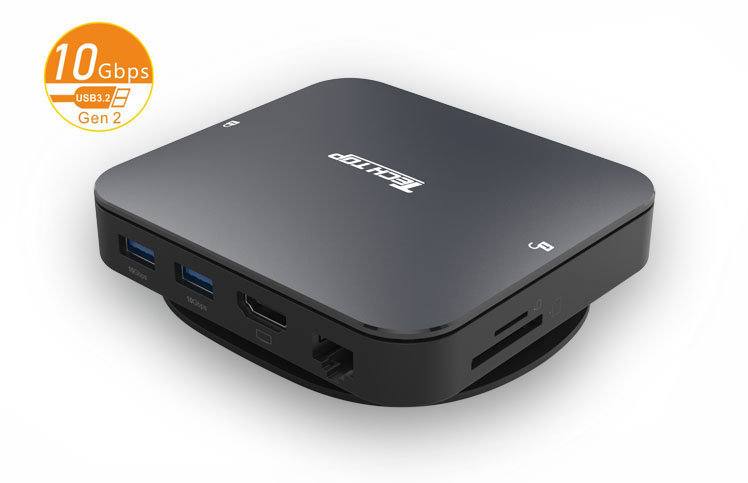

D1072A: USB3.2 Gen2 Type-C to M.2 SSD+2*USB-A HUB+Video+RJ45+SD/Micro SD Card Reader+Audio+PD/Data
Upstream Port: 1×USB-C, USB3.2 10Gbps (Reversible plug
Downstream Ports: 2×USB-A (10Gbps), USB3.2/2.0/1.1
1×M.2 SSD slot (PCIe& SATA) 1×HDMI 2.0 (4K@60Hz, HDCP1.4/2.3)
1×RJ45 (Gigabit Ethernet) 1×SD/Micro SD Card Reader (5Gbps max)
1×Audio combo jack (4-pole, 384kHz/24bit DAC) 1×USB-C PD (100W, 20V/5A + 5Gbps data)
Data Transfer Speed:
USB: 10Gbps
Ethernet: 1000Mbps
SSD: PCIe Gen3x2 (≈20Gbps) / SATA6Gbps
Power Delivery: 100W max (65W+ devices reserve 15W)
Video Support: 4K@60Hz HDR10+, Dolby Vision VRR, QMS, QFT, ALLM
Compatibility:
SSD Support: NVMe/AHCI, TRIM, UASP acceleration
OS Support: Windows 7+/Linux 3.x+/macOS 10.6+
Cooling: Includes 22×70×3mm heatsink & 1mm thermal pads
Material: Anodized aluminum (heat dissipation) + ABS
Color: Titanium gray
Dimensions: 110×100×31.5mm
Upstream Port: 1×USB-C, USB3.2 10Gbps (Reversible plug
Downstream Ports: 2×USB-A (10Gbps), USB3.2/2.0/1.1
1×M.2 SSD slot (PCIe& SATA) 1×HDMI 2.0 (4K@60Hz, HDCP1.4/2.3)
1×RJ45 (Gigabit Ethernet) 1×SD/Micro SD Card Reader (5Gbps max)
1×Audio combo jack (4-pole, 384kHz/24bit DAC) 1×USB-C PD (100W, 20V/5A + 5Gbps data)
Data Transfer Speed:
USB: 10Gbps
Ethernet: 1000Mbps
SSD: PCIe Gen3x2 (≈20Gbps) / SATA6Gbps
Power Delivery: 100W max (65W+ devices reserve 15W)
Video Support: 4K@60Hz HDR10+, Dolby Vision VRR, QMS, QFT, ALLM
Compatibility:
SSD Support: NVMe/AHCI, TRIM, UASP acceleration
OS Support: Windows 7+/Linux 3.x+/macOS 10.6+
Cooling: Includes 22×70×3mm heatsink & 1mm thermal pads
Material: Anodized aluminum (heat dissipation) + ABS
Color: Titanium gray
Dimensions: 110×100×31.5mm
-
