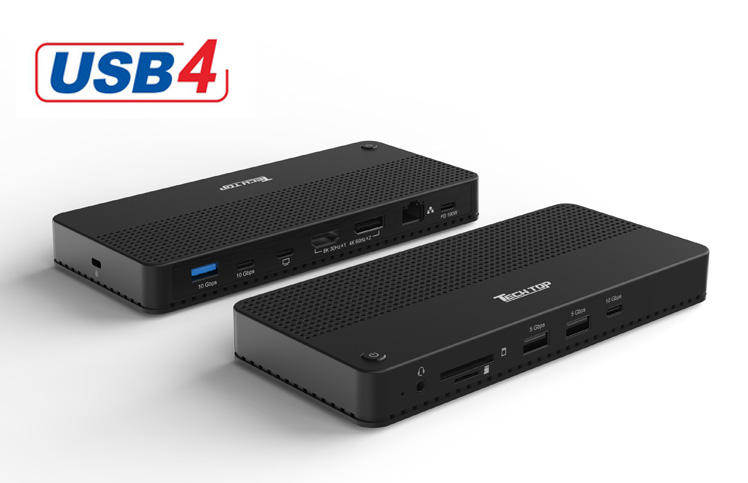

D1079A: USB4 Docking Station
Upstream Port: 1x USB4 Type-C (40Gbps, Thunderbolt 4 compatible)
Downstream Port: 3x USB 10Gbps (2x Type-C + 1x Type-A), 2x USB 5Gbps Type-A, 1x HDMI 2.1 (8K@30Hz / 4K@120Hz), 1x DisplayPort 1.4a (8K@30Hz / 4K@120Hz), 1x Gigabit Ethernet (RJ45), 1x SD 4.0 / Micro SD 3.0 card reader, 1x 3.5mm Audio Combo Jack (DAC 384kHz/24bit), 1x Type-C PD 100W (20V/5A)
Other Ports: DC 5V power input
Data Transfer Speed: USB4: 40Gbps, USB 3.2 Gen 2: 10Gbps, USB 3.2 Gen 1: 5Gbps, SD/Micro SD: UHS-II speeds
Output Current: 100W PD (Max)
Input Power: External power required (DC 5V)
Compatible OS: Windows 7+/Linux/macOS 10.6+
LED Indicators: White: Power status, Yellow/Green: Ethernet activity (LINK/ACT)
Material: Not specified (matte black finish)
Color: Black
Dimensions: 180mm × 80mm × 20.5mm
Upstream Port: 1x USB4 Type-C (40Gbps, Thunderbolt 4 compatible)
Downstream Port: 3x USB 10Gbps (2x Type-C + 1x Type-A), 2x USB 5Gbps Type-A, 1x HDMI 2.1 (8K@30Hz / 4K@120Hz), 1x DisplayPort 1.4a (8K@30Hz / 4K@120Hz), 1x Gigabit Ethernet (RJ45), 1x SD 4.0 / Micro SD 3.0 card reader, 1x 3.5mm Audio Combo Jack (DAC 384kHz/24bit), 1x Type-C PD 100W (20V/5A)
Other Ports: DC 5V power input
Data Transfer Speed: USB4: 40Gbps, USB 3.2 Gen 2: 10Gbps, USB 3.2 Gen 1: 5Gbps, SD/Micro SD: UHS-II speeds
Output Current: 100W PD (Max)
Input Power: External power required (DC 5V)
Compatible OS: Windows 7+/Linux/macOS 10.6+
LED Indicators: White: Power status, Yellow/Green: Ethernet activity (LINK/ACT)
Material: Not specified (matte black finish)
Color: Black
Dimensions: 180mm × 80mm × 20.5mm
-
