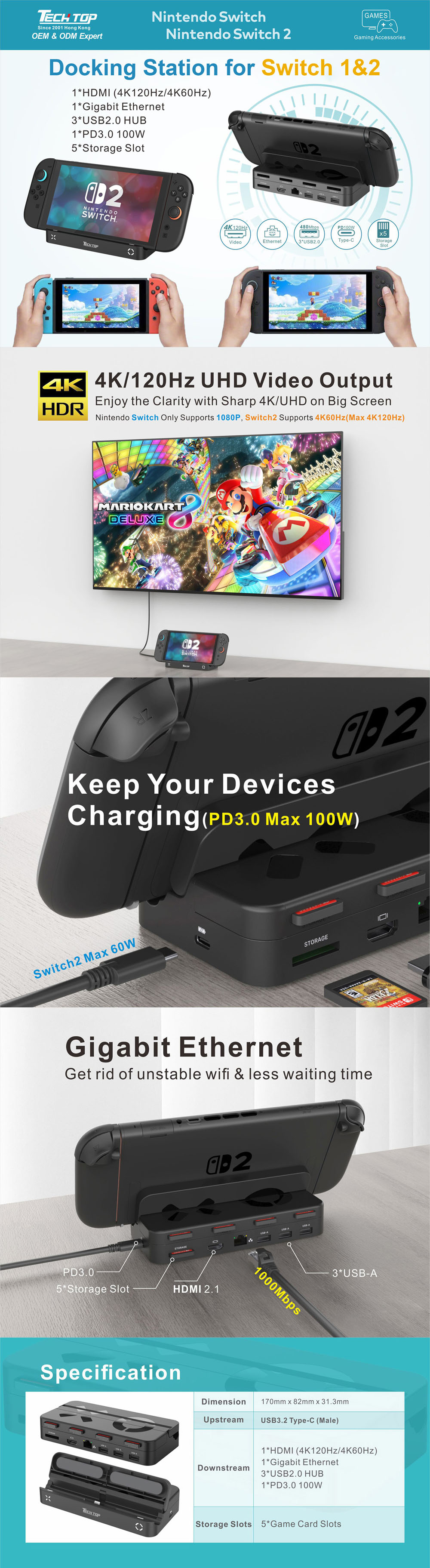

G1002H: Docking Station for Switch 1&2

G1002H: Docking Station for Switch 1&2

Upstream Port: 1x Type-C (USB 3.2 Gen1)

Downstream Ports:

1x HDMI 2.1 (4K@120Hz)

1x RJ45 Gigabit Ethernet (10/100/1000Mbps)

3x USB 2.0 Type-A (480Mbps)

1x PD3.0 Type-C (100W max)

Other Ports: 5x Game card slots

Data Transfer Speed:

•HDMI: Up to 48Gbps (HDMI 2.1)

•USB: 480Mbps

•Ethernet: 1000Mbps

•Output Current:

•USB ports: 500mA each

•PD port: 60W (Switch2), 100W max

•Input Power: PD3.0 (100W max)

LED Indicators:

•Yellow: Data activity (flashing during transfer)

•Green: Network connection (steady when connected)

Physical Characteristics:

•Material: ABS plastic

•Color: Matte black

•Dimensions: 170×82×31.3mm

￥ 0.00
0.00

Product Description

Upstream Port: 1x Type-C (USB 3.2 Gen1)

Downstream Ports:

1x HDMI 2.1 (4K@120Hz)

1x RJ45 Gigabit Ethernet (10/100/1000Mbps)

3x USB 2.0 Type-A (480Mbps)

1x PD3.0 Type-C (100W max)

Other Ports: 5x Game card slots

Data Transfer Speed:

•HDMI: Up to 48Gbps (HDMI 2.1)

•USB: 480Mbps

•Ethernet: 1000Mbps

•Output Current:

•USB ports: 500mA each

•PD port: 60W (Switch2), 100W max

•Input Power: PD3.0 (100W max)

LED Indicators:

•Yellow: Data activity (flashing during transfer)

•Green: Network connection (steady when connected)

Physical Characteristics:

•Material: ABS plastic

•Color: Matte black

•Dimensions: 170×82×31.3mm
