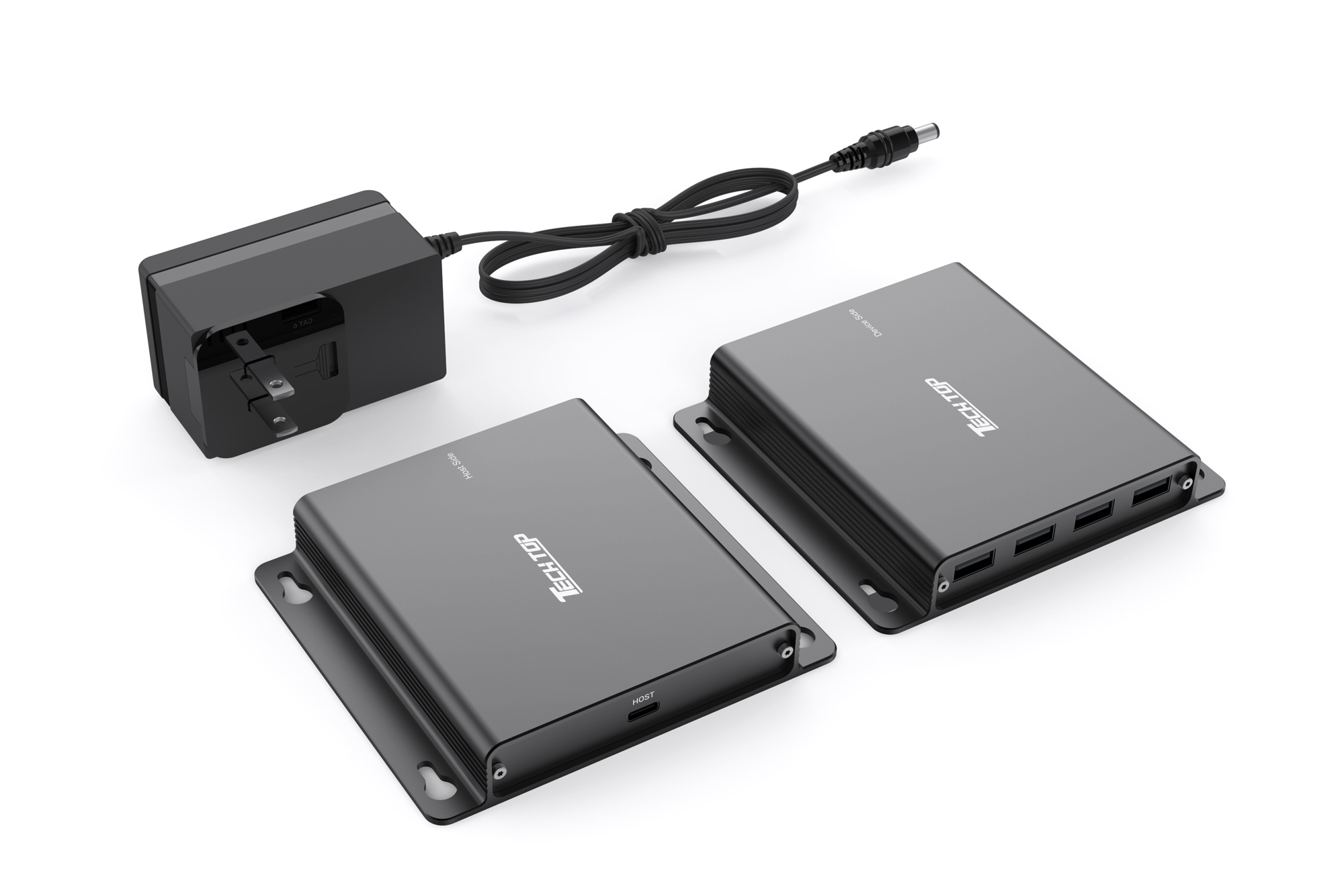

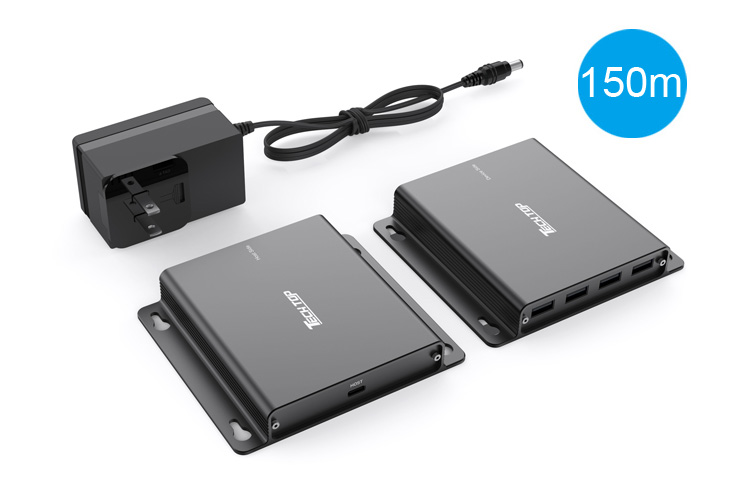

U1222A: 150M USB2.0 RJ45 Extender with USB-A 4 Ports Hub

U1222A: 150M USB2.0 RJ45 Extender with USB-A 4 Ports Hub

Upstream Port: 1 x USB2.0 Type C Male; 1 x RJ45 Socket


Downstream Port: 4 x USB2.0 Type A Female; 1 x RJ45 Socket


Performance:  Mainly applied to multimedia conferences, education, remote USB transmission and display control for industrial computers, and multimedia display control for medical equipment.

It has 4 USB downstream ports, allowing multiple USB devices such as printers, scanners, keyboards, mice, etc. to be connected simultaneously. This is convenient for users to use various USB devices at the same location, avoiding frequent plugging and unplugging of the USB interfaces on the host.

It supports the extension of up to 150 meters through CAT6 network cables and has an enhanced power supply interface, which can supply power to USB devices with higher power consumption.


LED:  Power & LAN Status Indicator

Power:  DC 5V Power Port ( size: 3.5mm x 1.35mm )

Compatibility: Win7/8.1/10 ( 32/64 bit), Linux,  Mac OS 10.9-10.15, Smartphone & Tablet

Physical:  106 * 118 * 20mm, Black Metal Housing


￥ 0.00
0.00

Product Description

Upstream Port: 1 x USB2.0 Type C Male; 1 x RJ45 Socket


Downstream Port: 4 x USB2.0 Type A Female; 1 x RJ45 Socket


Performance:  Mainly applied to multimedia conferences, education, remote USB transmission and display control for industrial computers, and multimedia display control for medical equipment.

It has 4 USB downstream ports, allowing multiple USB devices such as printers, scanners, keyboards, mice, etc. to be connected simultaneously. This is convenient for users to use various USB devices at the same location, avoiding frequent plugging and unplugging of the USB interfaces on the host.

It supports the extension of up to 150 meters through CAT6 network cables and has an enhanced power supply interface, which can supply power to USB devices with higher power consumption.


LED:  Power & LAN Status Indicator

Power:  DC 5V Power Port ( size: 3.5mm x 1.35mm )

Compatibility: Win7/8.1/10 ( 32/64 bit), Linux,  Mac OS 10.9-10.15, Smartphone & Tablet

Physical:  106 * 118 * 20mm, Black Metal Housing
